Equipment / Supply Room, Hepa Filters, ISO Certified
Lab Description

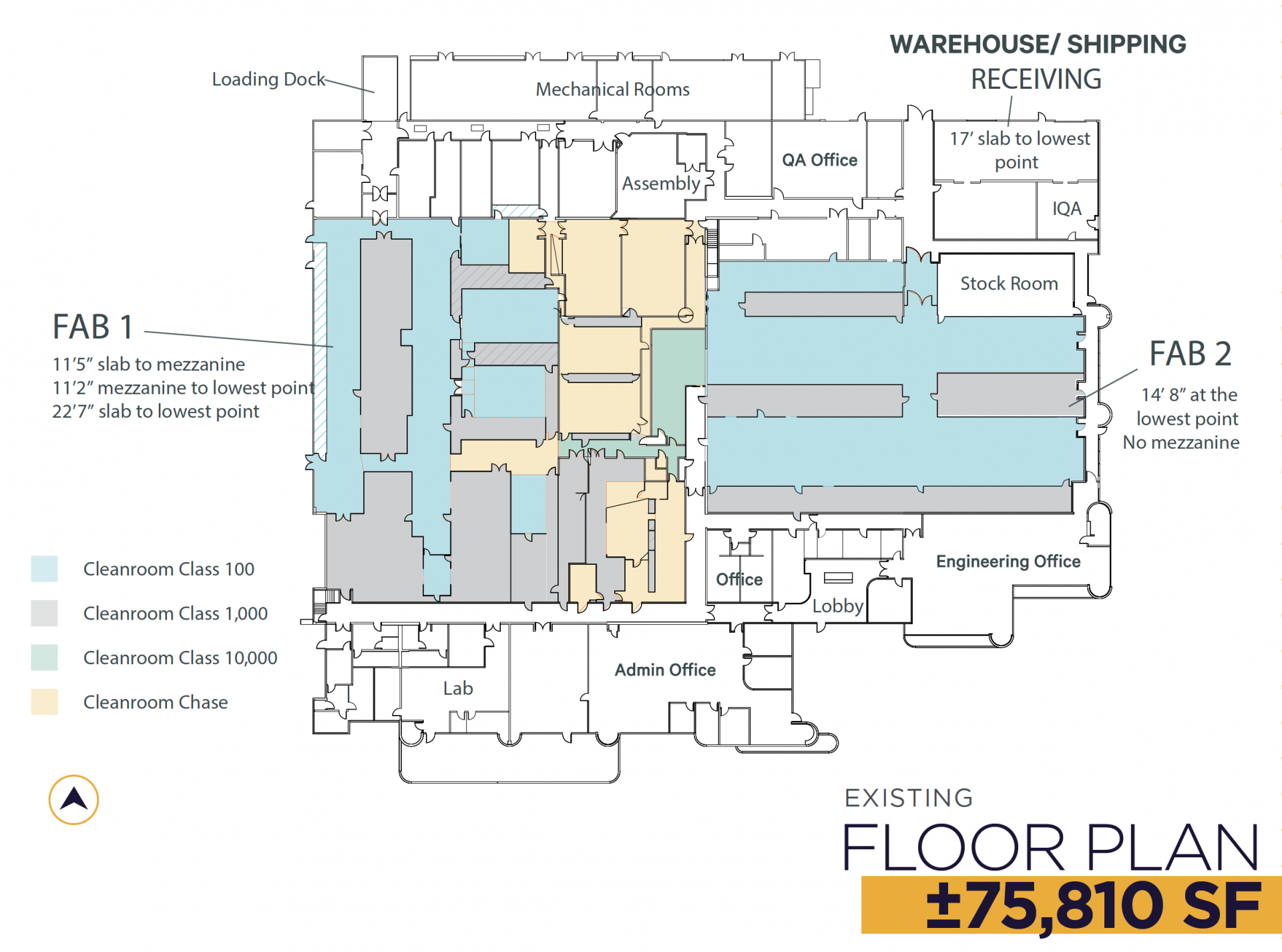

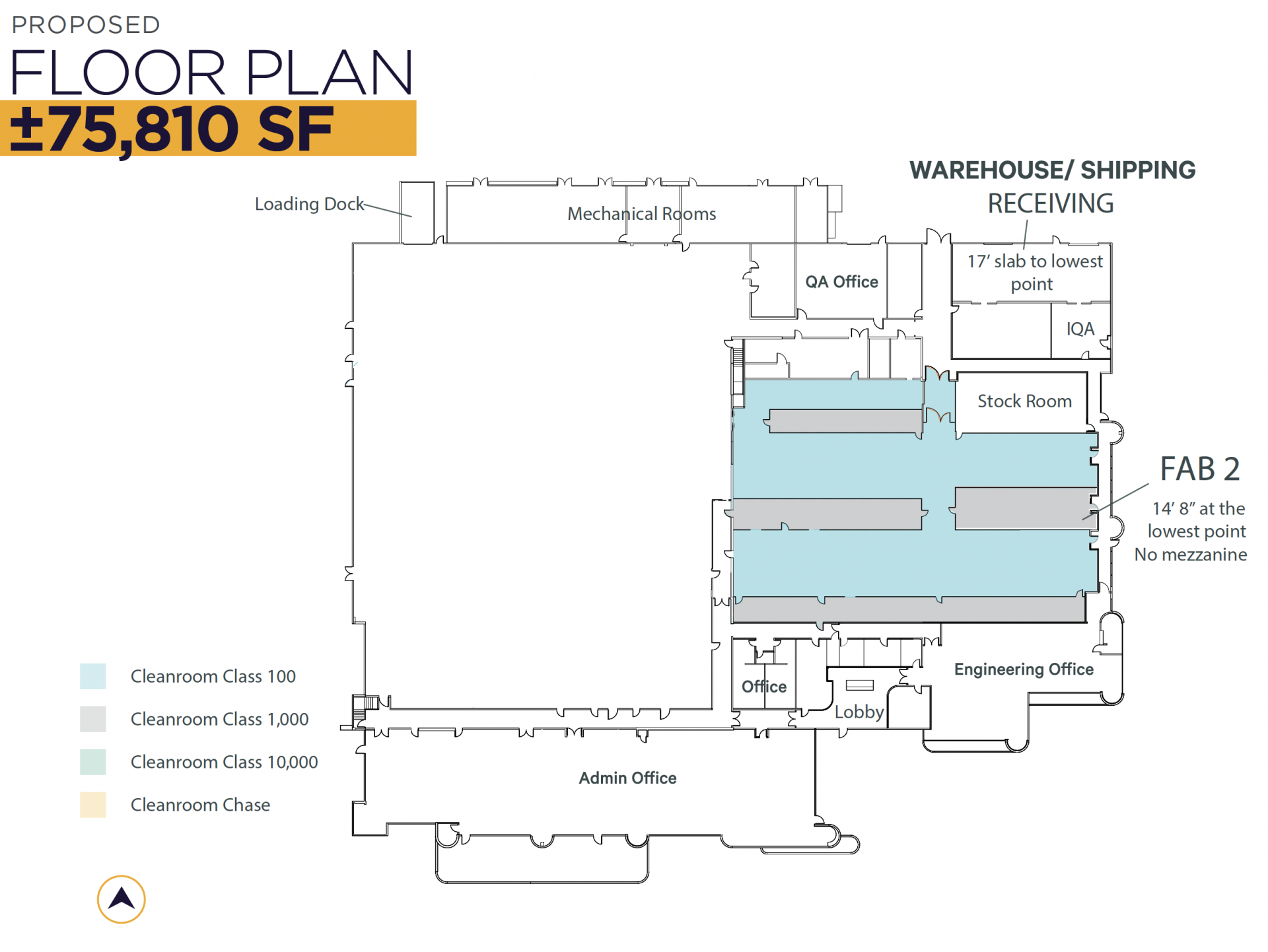

Fab 2 Cleanrooms: Class 100 | Class 1,000 | Class 10,000
Ceiling Height: Fab2 11'6"
Interstitials: Interstitial maintained area above the fab area
Column span: 40 feet
ESD Flooring: Yes
Parking
240 Spaces / 3.2 per 1,000 SF
Property Details
Power
4,000 Amps, 480 Volts, 3-Phase
Clear Height
14'8" to 22'9"
Total Parking
240 Spaces / 3.2 per 1,000 SF
Highlights

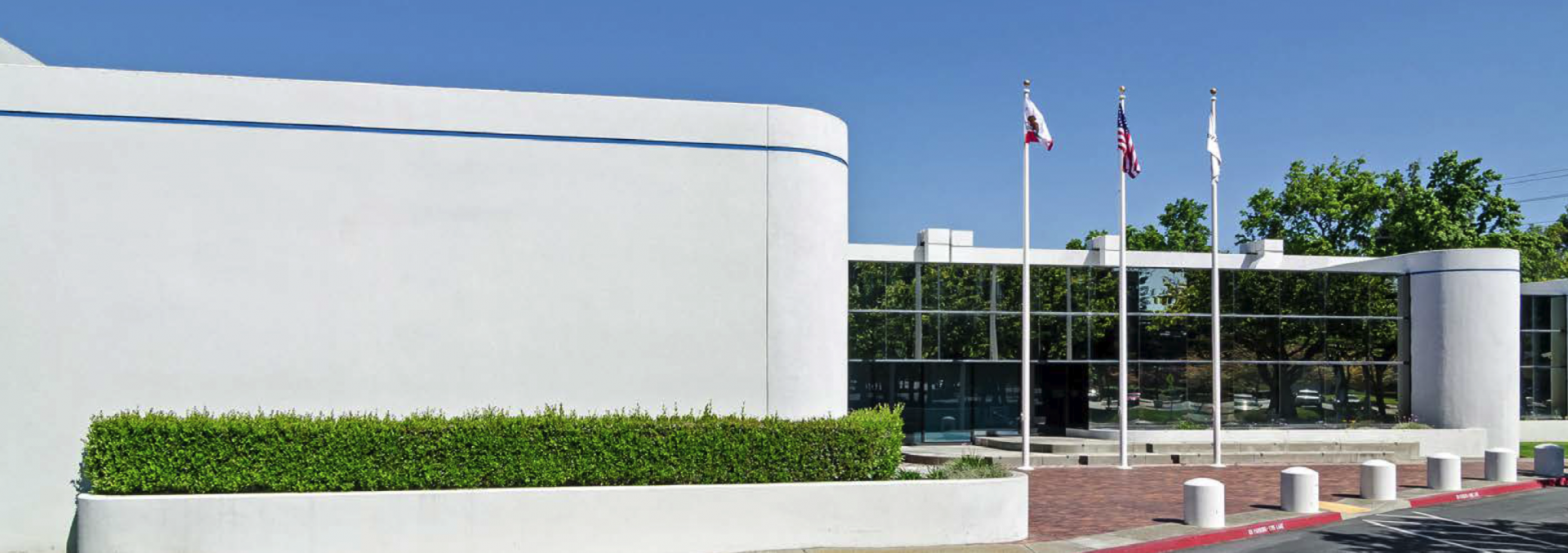

Building Size: ±75,810 SF of Premier R&D Building
Clean Rooms: Class 100, Class 1,000 and Class 10,000
Equipment Pad & Mechanical Exterior Rooms: ±17,200 SF
Power: 12KV service with up to 3.39 MW of power / 4,000 amps at 480V
Clear Height: 14’8” - 22’9”
Loading Doors: Dock & Grade Level Capability
Parking: 3.2/1,000 (±240 Stalls)
Description
±75,810 SF of Premier R&D Building with Class 100, Class 1,000, and Class 10,000 Clean Rooms. Included a ±17,200 SF Equipment Pad & Mechanical Exterior Rooms.
